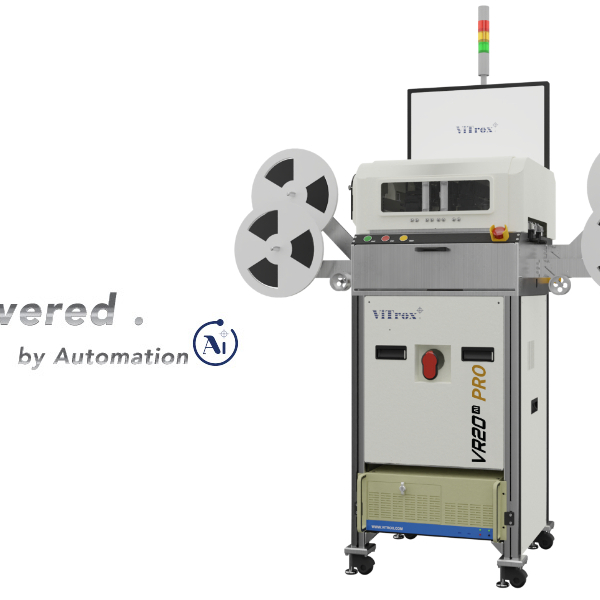

VR20 i

Model Type VR20 i VR20 Li
Carrier Tape Width 8, 12, 16mm 12, 16, 24mm
UPH
4mm pocket pitch (8mm carrier tape width) > 45K
8mm pocket pitch (12mm carrier tape width) > 40K
12mm pocket pitch (16mm carrier tape width) > 25K
8mm pocket pitch (12mm carrier tape width) > 40K
12mm pocket pitch (16mm carrier tape width) > 25K
16mm pocket pitch (24mm carrier tape width) > 20K
Inspection Criteria Tape Seal Mark Package Lead Bottom Carrier Tape
  Broken/ Open Seal
Uneven Seal		 Wrong Orientation
Wrong/ Mixed Mark
Missing Mark		 Scratches
Chipped Off		 Lead Width
Lead Pitch
Lead Span
Missing Lead		 Dented
Protrusion
Crack
Accuracy +/- 35 µm N/A N/A +/- 18 µm N/A
Min. Detectable Defect Size N/A N/A 250 µm x 250 µm
(10mils x 10mils)		 N/A 300 µm x 300 µm
(12mils x 12mils)
Reel Size 178 mm (7”) to 330 mm (13”)
Package Type SOT/SC, SOD, SOIC, QFN/MLP, LED
MTBA > 60mins
MTBF > 200 hrs

* Tape width 32 & 44 mm are optional. | Specifications are subject to change.
