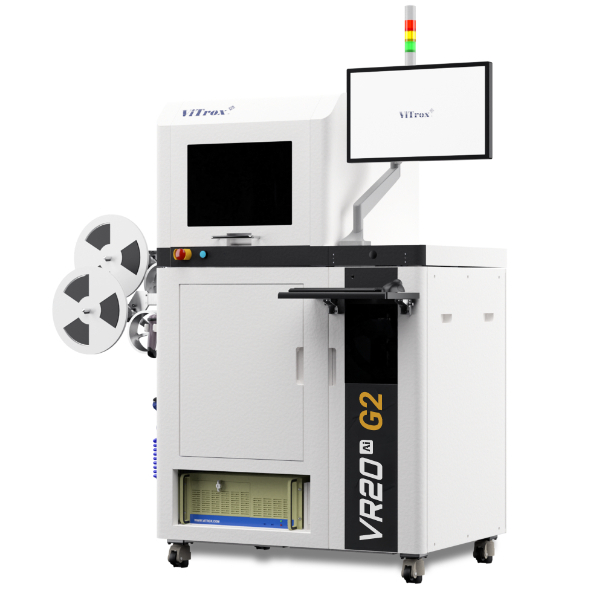

VR20i G2

Model Type VR20 i G2
Carrier Tape Width 8, 12, 16, 24, 32mm
UPH
2mm pocket pitch (8mm carrier tape width) > 130K
4mm pocket pitch (8mm carrier tape width) > 80K
8mm pocket pitch (12mm carrier tape width) > 60K
12mm pocket pitch (16mm carrier tape width) > 38K
16mm pocket pitch (24mm carrier tape width) > 30K
24mm pocket pitch (32mm carrier tape width) > 18K
Inspection Criteria Tape Seal Mark Package Lead Bottom Carrier Tape
  Broken/ Open Seal
Uneven Seal		 Wrong Orientation
Wrong/ Mixed Mark
Missing Mark		 Scratches
Chipped Off		 Lead Width
Lead Pitch
Lead Span
Missing Lead		 Dented
Protrusion
Crack
Accuracy +/- 15 µm N/A N/A +/- 15 µm N/A
Min. Detectable Defect Size N/A N/A 150 µm x 150 µm
(6mils x 6mils)		 N/A 300 µm x 300 µm
(12mils x 12mils)
Reel Size 178 mm (7”) to 330 mm (13”)
Package Type SOT/SC, SOD, SOIC, QFN/MLP, LED
MTBA > 60mins
MTBF > 200 hrs

*Configurable subject to carrier tape width. | Specifications are subject to change.
