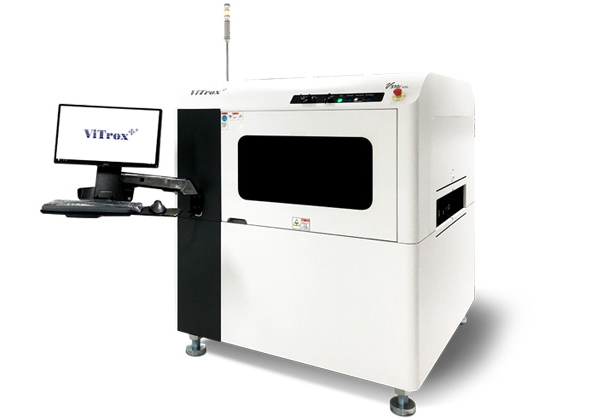

V510i XXL

System V510i XXL
System Performances
Inspection Functions Missing, Offset, Skewed, Polarity, Billboard, Tombstone, Lifted/Bent Leads, Excess/Insufficient Solder, Overturn, Bridging, Wrong Part (OCV Marking), Pin Through Hole (Solderability & Pin Detection), Package Coplanarity, Lifted Lead (Height Measurement), Foreign Material Detection, Polarity Dimple Measurement
Board Level Tracebility Camera-Read Barcodes; External Barcode Reader Configured; OCR Capability with Batch Code Logging
System Hardware
Operating System Windows 10 Pro (64 bit)
Optical Resolution & FOV Size 12MP CoaXPress Camera
Default: 60mmx45mm @ 15µm telecentric lens*
Option: 53mmx39mm @ 13µm telecentric lens*
Option: 32mmx24mm @ 8µm telecentric lens*
Inspection Speed 12MP @ 15μm resolution: up to 64cm²/sec
3D Technologies Phase Shift Profilometry’s (PSP) Methodology with 4-way projectors
Lighting Module Multiple Color, Multiple Angle, Multiple Segment LED Lighting Head, Auto Calibration Concurrent Lighting Module
Conveyor Width Adjustment Auto Width Adjustment; Bottom-Up Clamping; In-line SMEMA
PCB Dimension Standard FDL
Maximum PCB Size (L x W) 620mmx690mm (24.4”x27.1”)
Option: 1200mmx690mm (47.2”x27.2”)
DL Equal: 620mmx325mm (24.4”x12.7”)
Single Lane: 620mmx600mm (24.4”x23.6”)
Option: DL Equal: 960mmx325mm (37.8”x12.7”)
Single Lane: 960mmx600mm (37.7”x23.6”)"
Minimum PCB Size (L x W) 50mmx50mm (2”x2”) 50mmx50mm (2”x2”)
Maximum PCB Inspectable Area (L x W) 620mmx683mm (24.4”x27.1”)
Option: 1200x683mm (47.2”x27.2”)
DL Equal: 620mmx318mm (24.4”x12.5”)
Single Lane: 620mmx593mm (24.4”x23.3”)
Option: DL Equal: 960mmx318mm (37.8”x12.5”)
Single Lane: 960mmx593mm (37.7”x23.3”)
Maximum PCB Thickness 15mm (0.59") 8mm (0.31")
Minimum PCB Thickness 0.5mm (0.02") 0.5mm (0.02")
Maximum PCB Weight 7kg
Upgradeable option: 15kg
7kg
Top Clearance of PCB 50mm 50mm
Bottom clearance of PCB 70mm 70mm
PCB Edge Clearance 3.5mm (0.14”) 3.5mm (0.14”)
PCB Transport Height 890mm-965mm
PCB Temperature Ambient operating temperature is ~5⁰C to 40⁰C, maximum PCB temperature 80⁰C.
Installation Specification
Power Supplies 100-120 V, 16A / 200-240V, 8A Single Phase
Air requirement 0.6 Mpa/85 psi
System footprint (Width X Depth X Height) 1410mmx1500mmx2207mm
Total system weight ~1180kgs
* Based on system configuration
   Specifications are subject to change.
