  3. TESTING STAND_K Series

TESTING STAND_K Series

TESTING STAND_K Series
K_SERIES

Specification

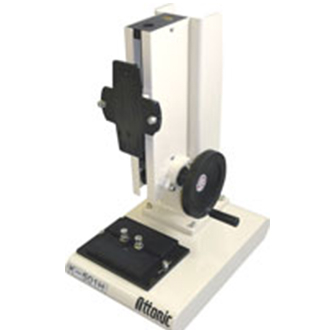

Model K-501H
Size mm(length × side × depth) 470×245×350
Weight About 22ｋｇ
Maximum load capacity 500N
The maximum stroke 150mm
Sending pitch 2.0ｍｍ/1rev.


Specification
Model K-501E
Size mm(length × side × depth) 520×250×350
Weight About 30ｋｇ
Maximum load capacity 500N
The maximum stroke １25ｍｍ
Sending pitch 10～100mm/min


Specification

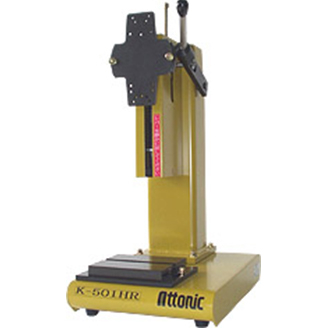

Model K-501HR
Size mm(length × side × depth) 470×245×350
Weight About 22ｋｇ
Maximum load capacity 500N
The maximum stroke 60ｍｍ

Specification
Model K-505H
Size mm(length × side × depth) 190×375×240
Weight About 15ｋｇ
Maximum load capacity 500N
The maximum stroke １25ｍｍ
Sending pitch 2.0ｍｍ/1rev.


Specification
Model K-505E
Size mm(length × side × depth) (235～255）×377×200
Weight About 20ｋｇ
Maximum load capacity 500N
The maximum stroke １25ｍｍ
Sending pitch 10～100mm/min

Specification
Model K-505HR
Size mm(length × side × depth) 280×370×200
Weight About 15ｋｇ
Maximum load capacity 500N
The maximum stroke 60ｍｍ


Model K-506H
Size mm(length × side × depth) 290×675×300
Weight
Maximum load capacity 2KN
The maximum stroke 100ｍｍ
Sending pitch 0.5ｍｍ/1rev.



Standard issue
Model K-502H
Size mm(length) 722mm
Weight About 65ｋｇ
Maximum load capacity 2KN
The maximum stroke 150ｍｍ
Sending pitch 0.5ｍｍ/1rev.


Standard issue
Model K-502E
Size mm(length ) 757mm
Weight About 70ｋｇ
Maximum load capacity 2KN
The maximum stroke 150ｍｍ
Sending pitch 5～50ｍｍ/min


Standard issue
Model K-503E
Size mm(length × side × depth) 793×325×475
Weight About 80ｋｇ
Maximum load capacity 5KN
The maximum stroke 175ｍｍ
Speed 5～50ｍｍ/min
Size of specimen support 150×110mm
