DIGITAL GAUGES -D/DL type

_{Linear Gauges (DL&D)}

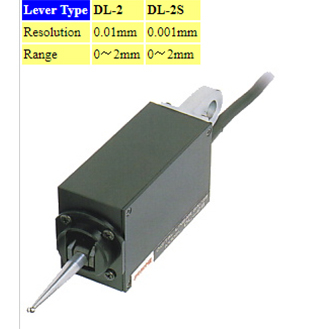

Best suited for deviation measurement. (DL-2/DL-2S)

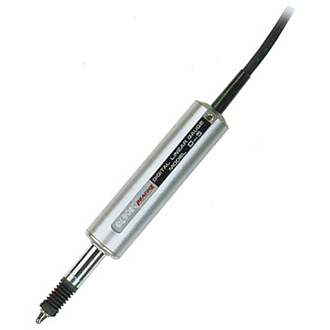

Best suited for confined conditions. (D-5/D-5S)

Specifications
Model	DL-2	DL-2S	D-5	D-5S	D-5UZ ( Discontinued )
Range	(*1) 2mm		5mm		5mm
Resolution	0.01mm	0.001mm	0.01mm	0.001mm	0.01mm
Accuracy (excluding quantized error)	(*2) 0.01mm	(*2) 0.002mm	0.005mm	0.002mm	0.01mm
Measuring force	Less than 0.6N		Less than 0.5N		Less than 1.0N
Mounting method	ø 6.5mm hole on lug back or dovetail at bottom		ø 8mm stem		ø 6.5mm hole on lug back
Contact point	Sø 2mm carbide		Sø 2.4mm cooper (X-2)		Sø 2.4mm steel (X-107)
Cord length	2m
Operating temperature	0 - 40ºC
Output signal	90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Compatible standard counters	C-500 / C-700 CM-5B
Options	Extension cables of 2, 3, 5, and 10 meters are available
(1) Lever moves linearly, unlike the arc movement in a lever type dial indicator. (2) Largest deviation value if narrow range for every 0.5mm step.
