Digital Sight DS-Fi3

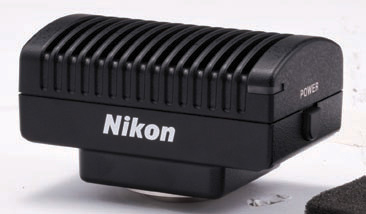

DS-Fi3 camera - Compact, high-definition, high-speed, and high-sensitivity C-mount camera.

Nikon's DS-Fi3 is a new high-definition color microscope camera equipped with a 5.9 megapixel CMOS image sensor. Its high-speed data readout, superior color reproduction, and high quantum efficiency are optimal for imaging in various observations, such as brightfield, DIC, phase contrast, and fluorescence observation.

Specifications

Image sensor	1/1.8 inch Color CMOS image sensor Size: 6.91 x 4.92 mm
Recordable pixels	All pixels: 2880 x 2048 2 vertical and 2 horizontal pixels average: 1440 x 1024
Lens mount	C-mount
ISO sensitivity (recommended exposure index)	Standard: equivalent to ISO 50 (Selectable from ISO 50 to ISO 3200 equivalent)
Live display mode* (Maximum fps)	All pixels (2880 x 2048): 15 fps 2 vertical and 2 horizontal pixels average: 30 fps (1440 x 1024): 30 fps
Exposure time	100μ sec to 30 sec
Photometry mode	Average photometry: Average intensity within the photometry area Peak photometry: Maximum intensity within the photometry area
Exposure control	One-time automatic exposure: Exposure time is adjusted automatically for one-time within the optimum range for the camera Continuous automatic exposure: Automatic exposure adjustment is performed continuously to keep the exposure within the camera Manual exposure: Exposure time and gain settings are made manually
Exposure correction	Average metering: ±1EV, Step: 1/6EV Peak hold metering: -1EV to ±0EV
Interface	USB3.0 (connect with PC, DS-L4) x1, External trigger x1
Power Supply	AC100-240V 50Hz/60Hz
Power Consumption	4.8W
Dimensions	100 (W) x 66 (D) x 65 (H) mm
Weight	400g (approx.)
Operating environment	0-40°C , 60% RH max. (without condensation)
